Battery
48V 15.6Ah
Motor
1000W
Max Range
45KM
Drivetrain
7-Speed
Max-Speed
50KM/H
Tire
20"×4.0"
| EKXBIKE® Official Store
Couldn't load pickup availability
This product is on pre-sale and is expected to arrive at the warehouse and be shipped in mid-May.
2-Year Warranty

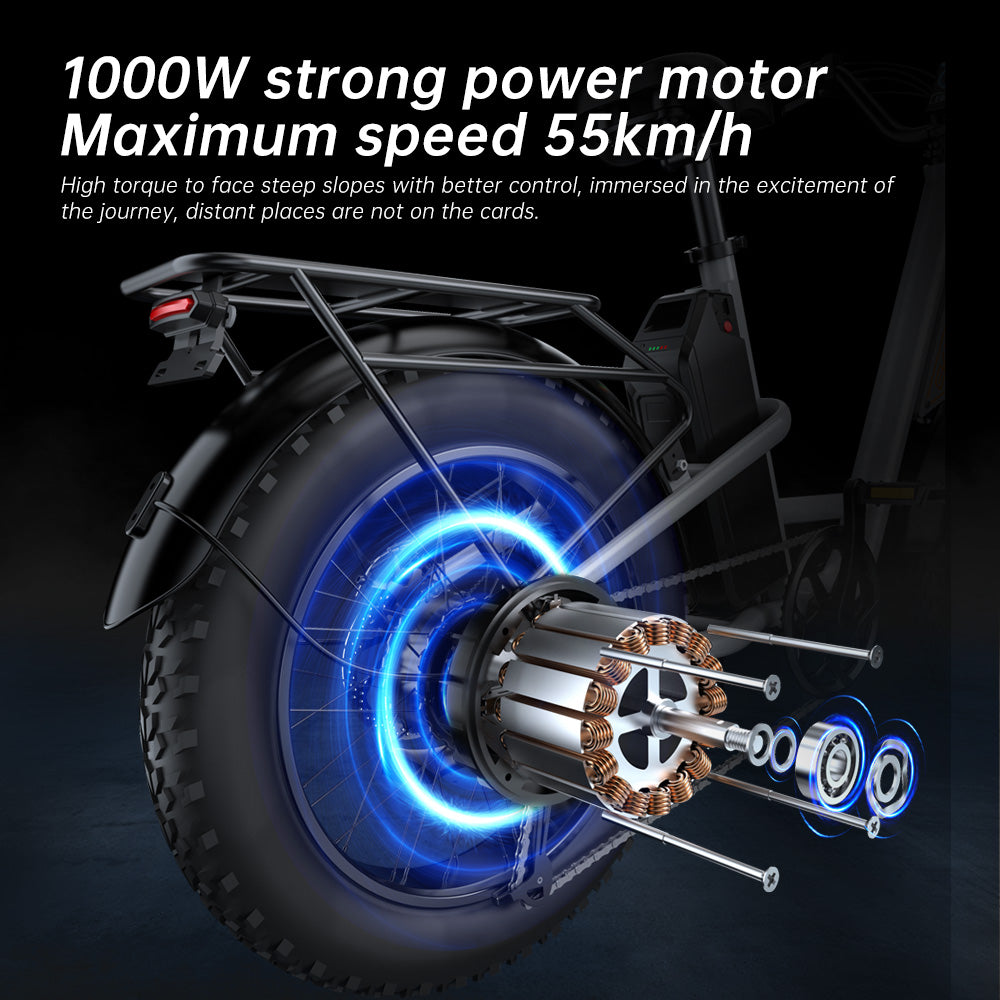

1000W Powerful Motor
Equipped with a powerful 1000W motor, the L1 offers exceptional torque, ensuring a dynamic and efficient riding experience.
48V 20Ah Battery
Automotive-grade lithium-ion battery system offers safety, stability, and convenience with removable design and USB port.
Front fork shock absorber
The front fork shock absorber improves riding comfort, controllability, and safety for a smooth e-bike experience in urban commuting and off-road adventures.
Backlit digitaldashboard LCD
The LCD screen in the center of the vehicle can monitor all kinds of data of the whole vehicle, providing accurate and effective information for your travel.
More Details
Hydraulic brake
Hydraulic brakes provide more powerful force and precise control, ensuring safer and more stable riding and reducing brake fatigue.
Transmission and gear adjustment

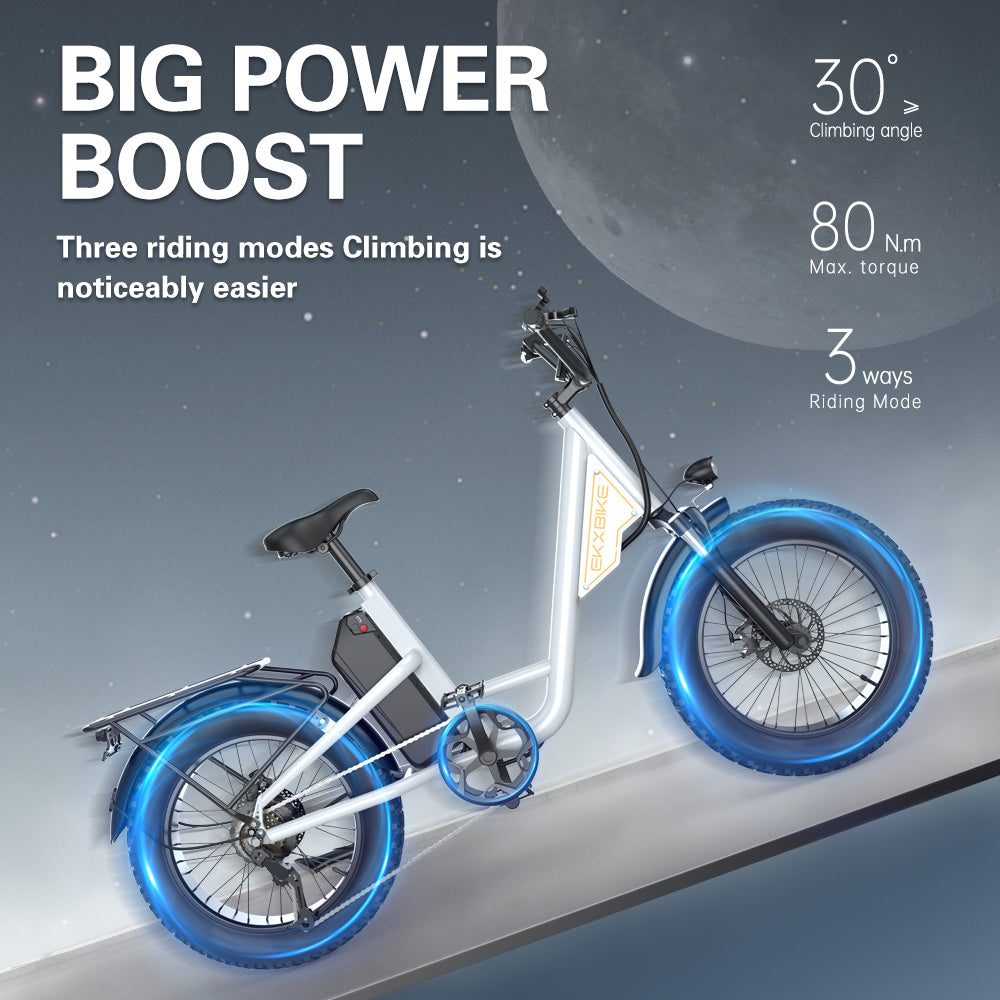

Three gears can be adjusted according to the terrain, easily reaching 30°Climbing angle, 80 Max torque.
Headlight
Headlights are not only essential equipment for night riding, but also can improve overall riding safety and adaptability, making every trip more secure.
Taillight
Taillight is an important guarantee for riding safety, allowing riders to be clearly identified in all environments and reducing the risk of accidents.
| Top Tube Length | 22.8in |
| Seat Height | 43in |
| D.Max Height | 51in |
| E.WheelBase | 46in |
| F.Total Length | 68in |
| H.Standover Height | 24in |
| Recommend Height | 65in-75in |
| Battery | 48V 15.6Ah | Charger | 48V 2.0A |
| Charging Time | 5~7 hours | Battery Lifetime | 1500 cycles |
| Top speed | 50km/h | Gross Weight | 40KG |
| Motor | 48V 1000W Brushless Geared | Max Range | 80km |
| Brakes | Hydraulic Disc Brake with power cut-off Feature |
| Tires | 20"x4.0" inch Fat Tire |
| Display | Smart LCD display that shows speed, battery status, pedal assist level, etc. |
| Fork | Aluminum Alloy Suspension Fork |
| Frame | Aluminum Alloy Frame |
| Drivetrain | Shimano 7-Speed |
| Throttle | Twist Throttle on the Right side of Handlebar |
| Headlight | LED Headlight powered by battery |
| Frame | 2-year |
| parts | 1-year |
| Terms & Conditions | The store reserves the right to interpret other warranties. |
